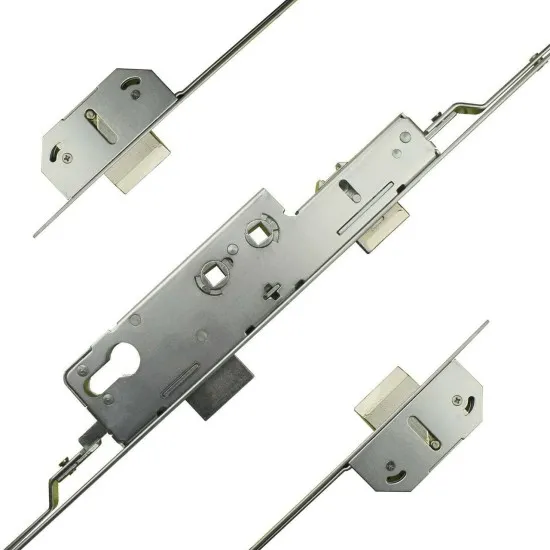

MECHANISM FOR UPVC DOOR 3X BOLT TYPE

Use the Gearbox, as overnight door lock for emergency repair. This gives you time in the daylight to be able to replace the complete unit.

The Avocet 3 Deadbolt is a 3 piece repair lock which comes in a box at approximately metre long making it easy to store and to transport. It is ideal for trade customers as it will replace 90% of locks with a 92/62mm PZ size. The Deadbolt extensions can be cropped to fit into the existing door keep.

Comes individually boxed, without keeps so that you can use the existing.

Avocet multipoint locks are easily recognizable once removed from the door, as the faceplates are typically stamped with the Avocet logo. Older versions may feature the "WMS" logo instead. The gearboxes are uniquely shaped, with a cutout extending below the latch, a distinctive feature when identifying multipoint locks.

Technical Details:
Split Spindle
Centre Case: Latch/Deadbolt
Backset: 35mm
Faceplate: 16mm
PZ: 92/62
