22mm x 10mm 4 -Way Manifold

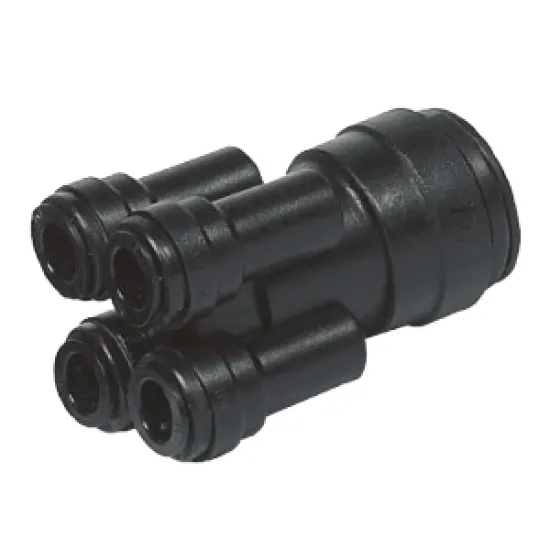

Plastic 4-Way Central Heating Manifold - 22mm x 10mm

Speed up your heating installations with our 4-Way Plastic Manifold.

This manifold is designed for modern central heating systems using microbore pipe. It replaces the need for multiple tees and joints by providing a single, compact distribution point from a 22mm main feed to four individual 10mm lines.

By running dedicated 10mm feeds to each radiator, you get a cleaner installation, easier system balancing, and fewer concealed joints under floors - reducing the risk of leaks and call-backs.

Manufactured from high-grade, durable engineering plastic, this manifold is lightweight, corrosion-proof, and built to last.
 It is suitable for use on both flow and return legs and is compatible with sealed and open vented systems.

KEY BENEFITS:

• Faster Installation - One central connection feeds four circuits, saving hours on labour.
• Neat & Professional Finish - Ideal for cupboards, service voids and underfloor spaces.
• Easier Balancing - Individual runs to each radiator for improved heat distribution.
• Fewer Leak Points - Less concealed pipework means less risk.
• Durable & Corrosion Resistant - High-performance plastic construction will not corrode or scale.



TECHNICAL SPECIFICATION:

Type: 4-Way Distribution Manifold
Material: High-Performance Plastic
Main Connection: 22mm
Branch Connections: 4 x 10mm Microbore
Application: Central Heating Flow and Return, Plumbing Distribution
Compatibility: Suitable for copper and plastic pipe systems (use correct inserts)
System Type: Suitable for sealed and open-vented systems

IDEAL FOR:
New builds, apartments, renovations, and any central heating system using 10mm microbore feeds from a 22mm loop.

Please Note: For a complete heating system you will require two manifolds - one for flow and one for return. Inserts required when using plastic pipe.
