Thumb Turn EuroLock 80mm 40/40

Thumb Turn (Ellbee) EuroLock 80mm 40/40
Thumb Turn (Ellbee) EuroLock 80mm 40/40
Thumb Turn (Ellbee) EuroLock 80mm 40/40
Thumb Turn (Ellbee) EuroLock 80mm 40/40
Thumb Turn (Ellbee) EuroLock 80mm 40/40
Thumb Turn (Ellbee) EuroLock 80mm 40/40
Thumb Turn EuroLock 80mm 40/40
£12.99
Ex Tax: £10.83
  • Stock: In Stock - 3
  • Model: TTC4040
  • SKU: TTC4040

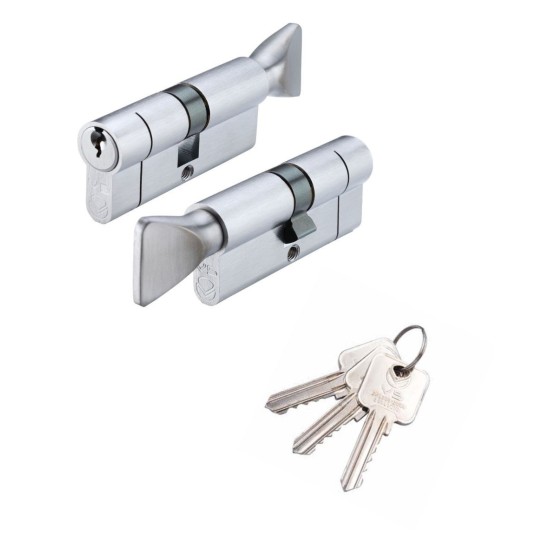

Vier V5 Thumbturn Euro Cylinder — Satin Chrome, Keyed to Differ

The Vier V5 thumbturn euro cylinder in Satin Chrome, Keyed to Differ locks with a key from outside and a thumbturn from inside. Each cylinder has its own individual key, so it’s ideal for static caravans and lodges.

It’s a 5-pin Euro profile cylinder with anti-drill, anti-pick and break-off protection, tested to BS EN 1303 and rated for 30-60 minute fire doors. Supplied with 3 keys.

Why Satin Chrome?

Satin Chrome is the most versatile finish — modern, low-shine, fingerprint-resistant. It works on uPVC, composite, timber and aluminium doors.

Important: The first number is the outside (key side) when fitted normally, the second is the inside (thumbturn side). Always measure yours — don’t guess from door thickness alone.

40/40mm — 60mm overall:

Vier V5 thumbturn euro cylinder, 40/40mm (80mm overall) in Satin Chrome, Keyed to Differ. Key outside, thumbturn inside. 5-pin, anti-drill, anti-pick, break-off system, BS EN 1303. 3 keys supplied.

How to Measure Your Euro Cylinder

Don’t measure the door — measure the cylinder.

Remove the cylinder — open the door, undo the long fixing screw on the edge of the door, turn the key slightly and slide the cylinder out.

Find the centre — the fixing screw hole / cam is the centre point.

Measure Side A — from the centre to the end of the key side (outside).

Measure Side B — from the centre to the end of the thumbturn side (inside).

Add them together — e.g. 40mm + 45mm = 85mm overall.

Choose the size that sits flush. Your new cylinder should sit level with your handle or escutcheon, not sticking out. If you’re between sizes, go for the closest fit — never leave a cylinder protruding, as it’s easier to attack.


Not sure? Measure from the centre screw to each end. Still unsure — message us your two measurements and we’ll confirm the size.
